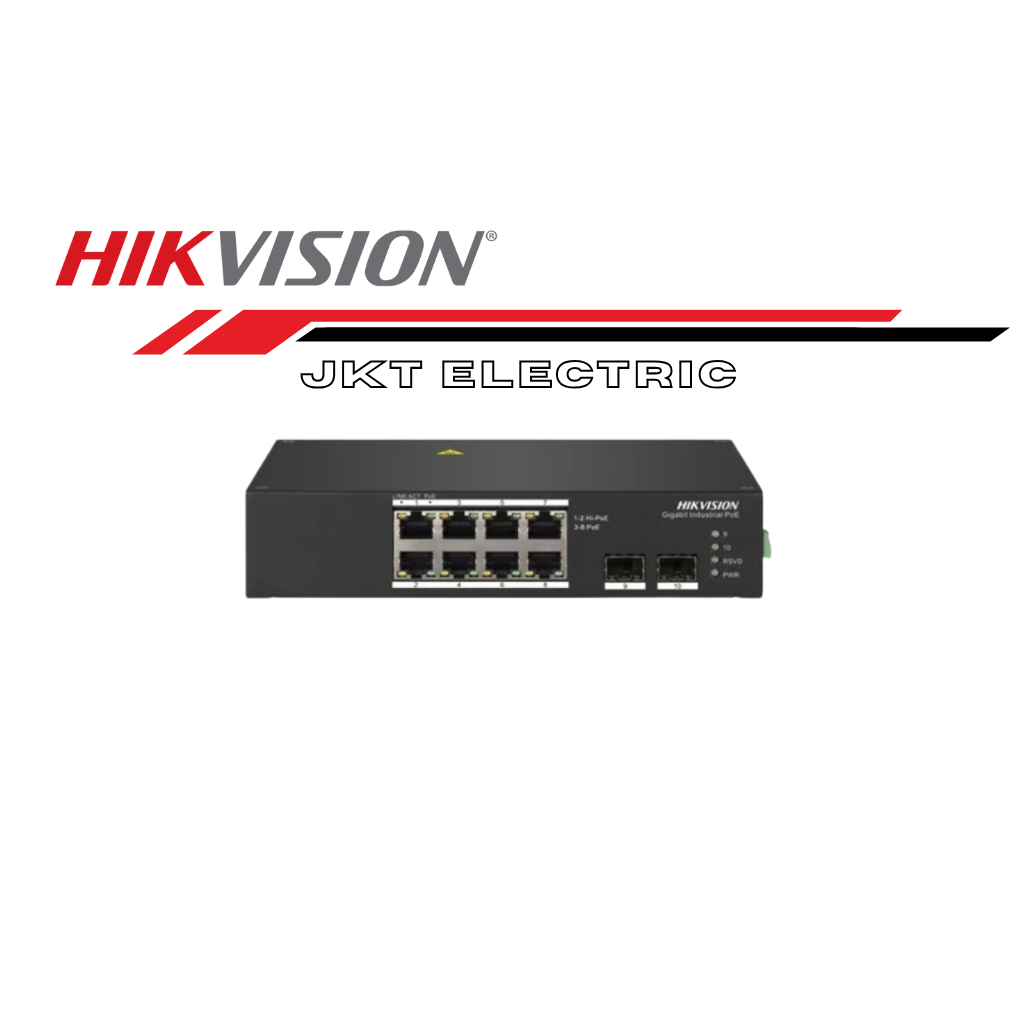

HIKVISION POE Switch DS-3T0510HP 8 Port Gigabit Unmanaged Industrial Hi-PoE Switch
- 8 x Gigabit PoE Ports, 2 x Gigabit SFP Fiber Optical Ports
- Up to 90 W Hi-PoE Output for Ports 1-2
- IEEE 802.3 af/at/bt Compliant
- PD Power Intelligent Detection with System-Level Overload Protection
- 6 kV Surge Protection
- Up to 300 m Long-range Transmission
- Wider Temperature (-40 °C to 75 °C) Design
- DIN Rail Design
Specification
| General | |
|---|---|
| Shell | Metal material, fan-free design |
| Net Weight | 0.585 kg (1.29 lb) |
| Gross Weight | 1.11 kg (2.45 lb) |
| Dimensions (W × H × D) | 197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”) |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48~57 V DC, 2.5 A |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Installation Mode | Desk-Mounted, Rail |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 8 × Gigabit PoE port, 2 × Gigabit fiber optical port |
| MAC Address Table | 4 K |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 1.5 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(-), 7/8(+) |
| PoE Port | Hi-PoE: Ports 1 to 2; PoE: Ports 3 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
