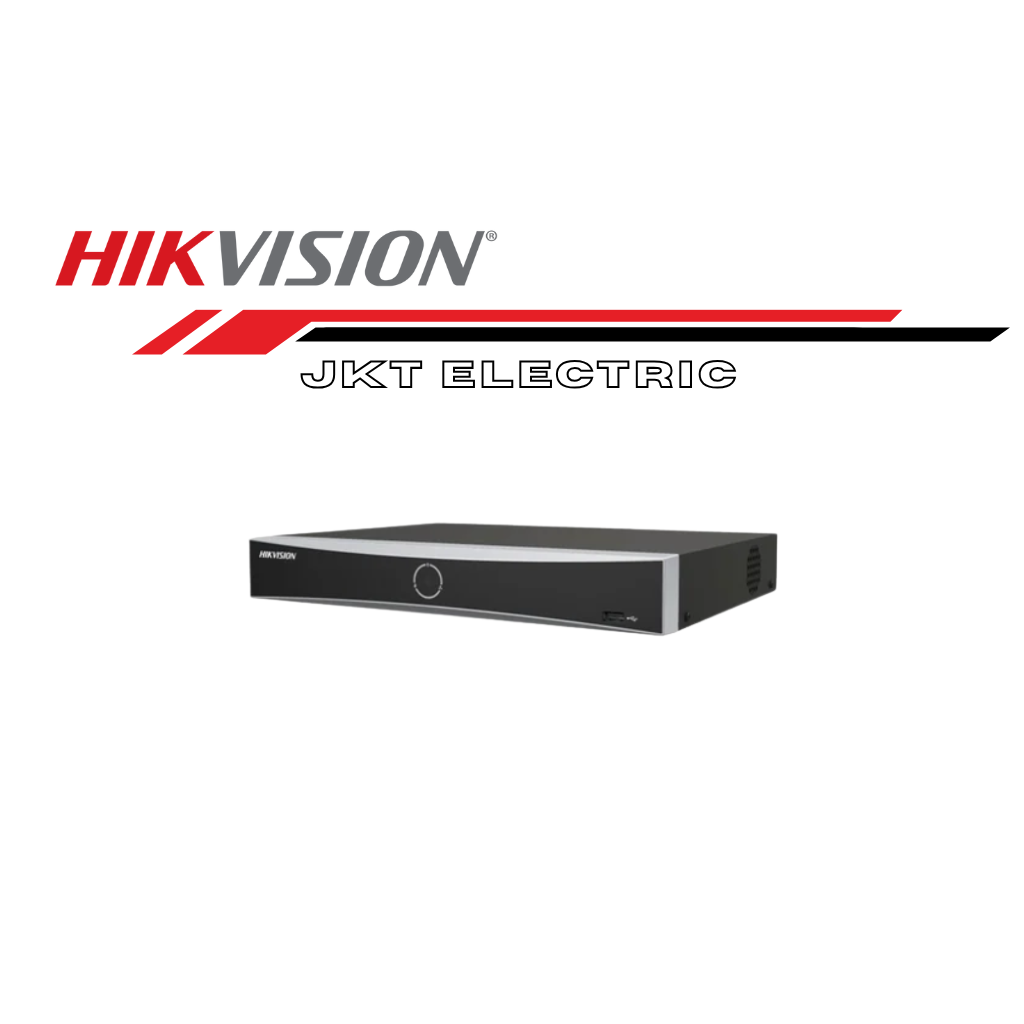

HIKVISION DS-7604NXI-K1 : 4-ch 1U K Series AcuSense 4K NVR
4-ch 1U K Series AcuSense 4K NVR
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Specification
| Intelligent Analytics | |
|---|---|
| AI by Device | Facial recognition, perimeter protection, motion detection 2.0 |
| AI by Camera | Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA |
| Facial Recognition | |
| Face Attributes | N/A |
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
| Face Picture Library | Up to 16 face picture libraries, with up to 5,000 face pictures in total (≤ 1MB each, total ≤ 73MB); or up to 20,000 face pictures (≤ 4MB each, total ≤ 1GB) |
| Facial Detection and Analytics Performance | 1-ch, 4 MP; 1-ch, 8 MP |
| Face Picture Comparison | 2-ch |
| Motion Detection 2.0 | |
| By Device | All channels, 4 MP (up to 8 MP with enhanced SVC), human and vehicle detection to reduce false alarms |
| By Camera | All channels |
| Perimeter Protection | |
| By Device | 1-ch, 4 MP (H.264/H.265), human and vehicle detection to reduce false alarms |
| By Camera | All channels |
| Video and Audio | |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (3840×2160)/30 Hz, 2K (2560×1440)/60 Hz, 1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz |
| VGA Output | 1-ch, 1920×1080/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz |
| Video Output Mode | HDMI1/VGA simultaneous output |
| CVBS Output | N/A |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265/H.265+/H.264+/H.264 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-ch |
| Decoding Capability | AI on: 1-ch@12 MP (30 fps) / 1-ch@8 MP / 3-ch@4 MP / 6-ch@1080p AI off: 1-ch@12 MP (30 fps) / 2-ch@8 MP / 4-ch@4 MP / 8-ch@1080p |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Network | |
| Remote Connection | 128 |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57+, Firefox V52+, Safari V12+, Edge V89+ |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each HDD |
| USB Interface | Front: 1 × USB 2.0; Rear: 1 × USB 2.0 |
| Alarm In/Out | 4/1; N/A; (4/1 is optional) |
| General | |
| GUI Language | Multi-language (incl. English, Thai, Japanese, Korean, Arabic, Russian, etc.) |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 320 × 240 × 48 mm (12.6″ × 9.4″ × 1.9″) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| Certification | |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
