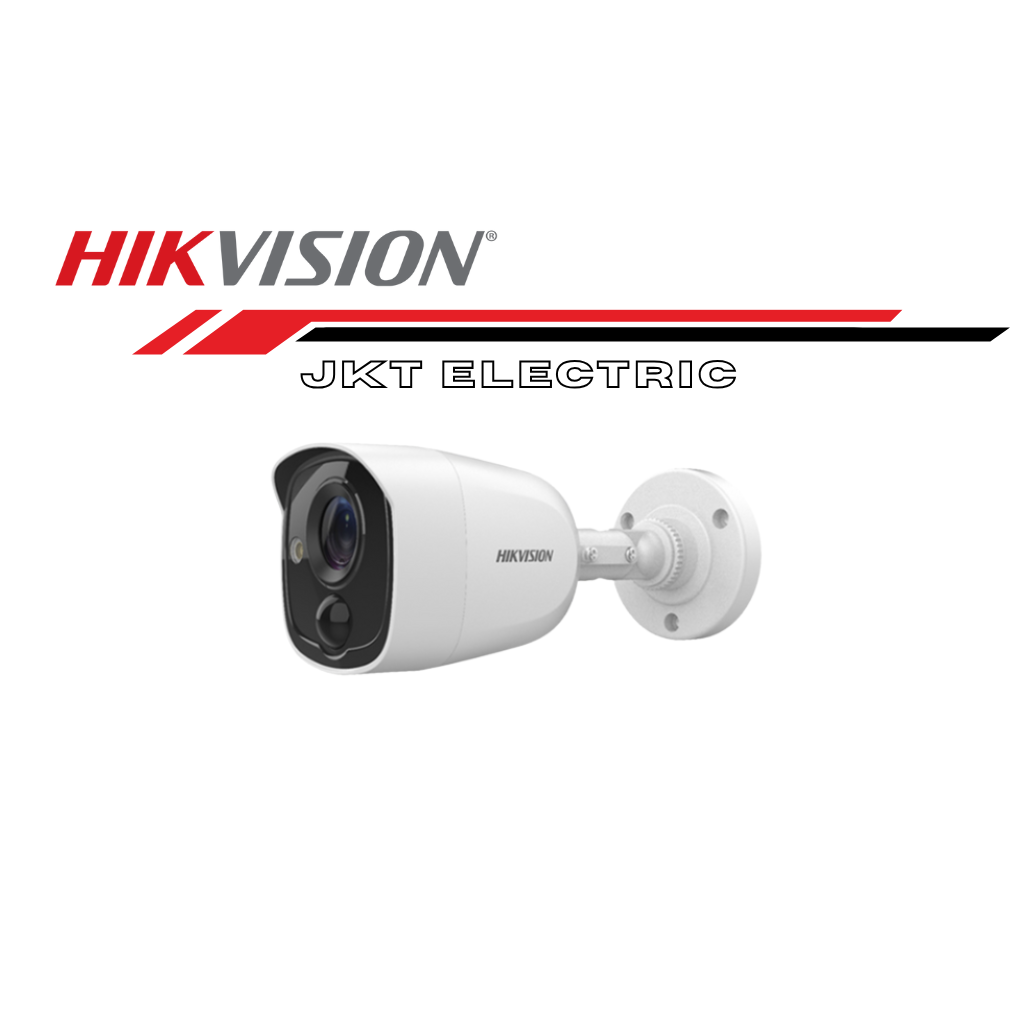

Hikvision 2MP DS-2CE11D8T-PIRLO
- 2 MP high performance PIR bullet camera
- PIR detection, strobe light alarm and alarm out to warn off intruders in real time
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67)
| Category | Specification |
|---|---|
| Resolution | 2 MP (1920 × 1080) |
| Image Sensor | 2 MP CMOS |
| Minimum Illumination | 0.003 Lux @ F2.0 (AGC ON) / 0 Lux with IR active |
| Shutter Speed | PAL: 1/25 s–1/50,000 s; NTSC: 1/30 s–1/50,000 s |
| Day & Night Mode | ICR filter; Auto / Color / Black & White |
| Wide Dynamic Range | ≥130 dB True WDR for strong back-light scenarios |
| Noise Reduction | 3D DNR for sharper image clarity ( |
| Lens Options | Fixed focal: 2.8 mm (103.5° h-FOV) or 3.6 mm (79–82° h-FOV) |
| Lens Mount | M12 |
| Frame Rate | TVI mode: 1080p @ 25fps (PAL) or 30fps (NTSC) |
| Smart IR / White Light | White Light on/off; strobe alert feature |
| PIR Detection | PIR motion sensor with ~110° detection angle; strobe light alarm; alarm output |
| Privacy Mask | Up to 4 configurable zones |
| Motion Detection | Up to 4 user-programmable areas |
| Video Output | 1 HD analog output (Hikvision‑C over coax) |
| Material | Metal housing (front cover); main body likely plastic |
| Dimensions | Ø68 × 70 × 179.8 mm (~2.68″ × 2.76″ × 7.08″) |
| Weight | Approx. 345–358 g (~0.76–0.79 lb) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to 140 °F); up to 90 % non-condensing humidity |
| Power Supply | 12 V DC ±25 %, max. consumption ~3.9 W (some sources list up to 4.5 W) ) |
| IR Range | Up to 20 m |
| White Light Range | Up to 20 m |
| Protection Rating | IP67 (dust and water resistant) |
