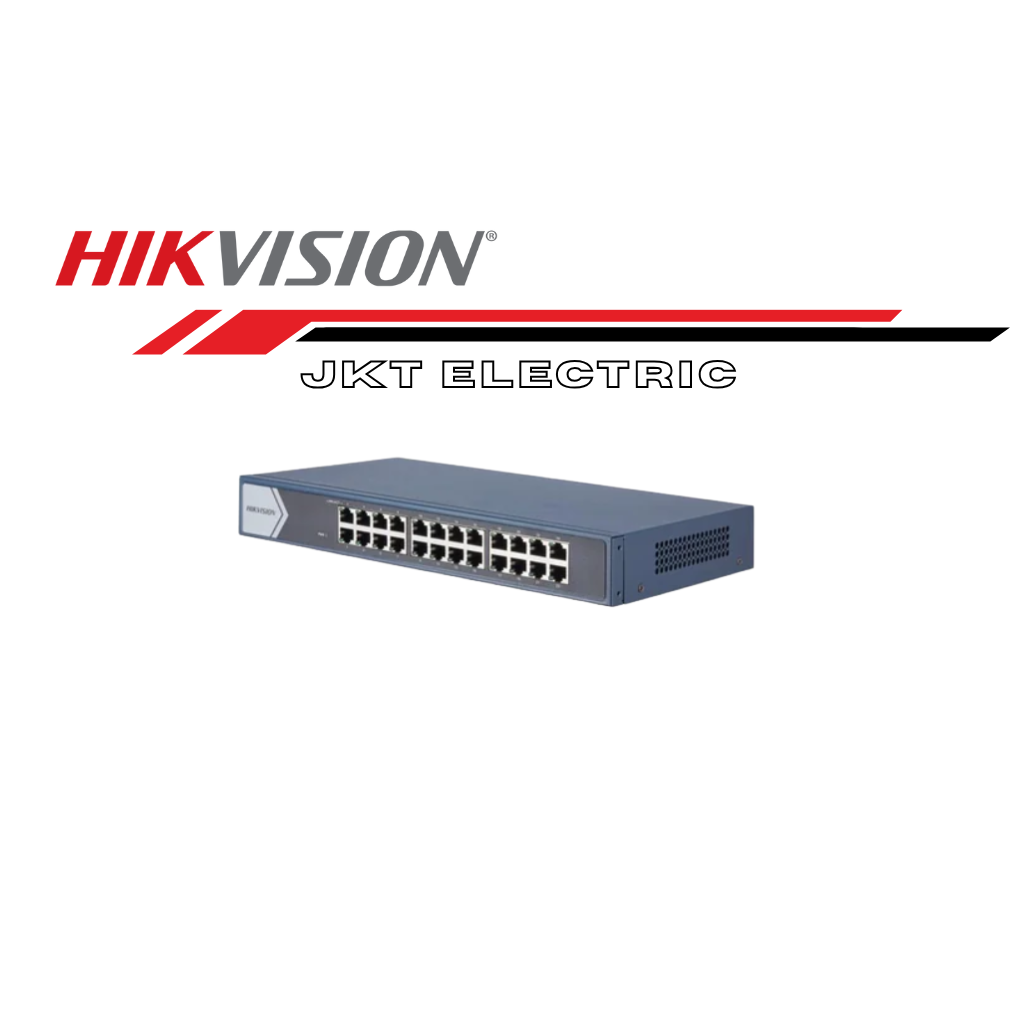

HIKVISION Network Switch DS-3E0524-E(B) 24 Port Gigabit Unmanaged Switch
- 24 x Gigabit Ethernet port
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Fan-free design with high reliability
Specification
| General | |
|---|---|
| Shell | Metal material, fan-free design |
| Net Weight | 1.60 kg (3.50 lb) |
| Gross Weight | 2.47 kg (5.44 lb) |
| Dimensions (W × H × D) | 335.0 mm × 44.5 mm × 175.8 mm (13.2” × 1.8” × 6.9”) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40˚C to 85˚C (–40˚F to 185˚F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 220 VAC, 50/60 Hz, Max. 0.7 A |
| Installation Mode | Metal material, fan-free design |
| Surge Protection | 6 kV |
| Network Parameters | |
| ท่าเรือ | 24 × Gigabit RJ45 port |
| MAC Address Table | 8 K |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.72 Mpps |
| Internal Cache | 4.10 Mbits |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
