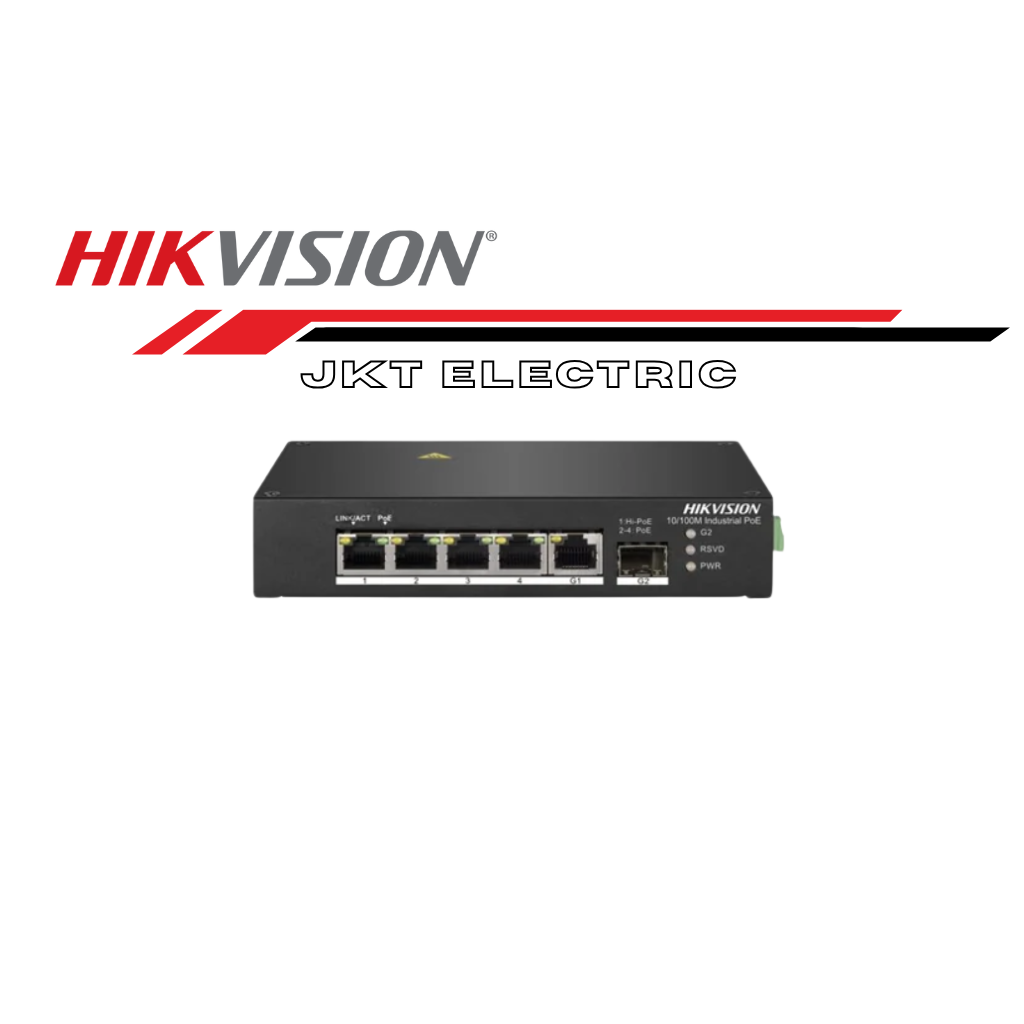

HIKVISION POE Switch DS-3T0306HP : 4 Port Fast Ethernet Unmanaged Industrial Hi-POE Switch
4 Port Fast Ethernet Unmanaged Industrial Hi-POE Switch
- 4 x 10/100 Mbps PoE Ports, 1 x Gigabit RJ45 Port, 1 x Gigabit SFP Fiber Optical Port
- Up to 90 W Hi-PoE Output for Port 1
- IEEE 802.3 af/at/bt Compliant
- PD Power Intelligent Detection with System-Level Overload Protection
- 6 KV Surge Protection
- Up to 300 m Long-range Transmission
- Wider Temperature (-40 °C to 75 °C) Design
- DIN Rail Design
Specification
| General | |
|---|---|
| Shell | Metal material, fan-free design |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.915 kg (2.02 lb) |
| Dimensions (W × H × D) | 158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”) |
| Operating Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48-57VDC, 2.5A |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Installation Mode | Rail, Desk-Mounted |
| Surge Protection | 6 KV |
| Network Parameters | |
| ท่าเรือ | 4 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port |
| MAC Address Table | 4 K |
| Switching Capacity | 4.8 Gbps |
| Packet Forwarding Rate | 3.57 Mpps |
| Internal Cache | 1 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Hi-PoE: Ports 1 to 1; PoE: Ports 2 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Dialing Function | |
| Long Range | Ports 3 to 4: up to 300 m. Long range performance may vary depending on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018) |
